Tunable Single-Frequency Pulsed Lasers
- Ideal source for single frequency laser pulses
- Either Ti:Sa or dye based cw systems can be used as seed for large wavelength ranges
- Also possible: To employ diode lasers with high isolation for smaller wavelength ranges
- Seed input power: 50 – 300 mW single frequency
- High peak powers while low amplified spontaneous emission (ASE)
- Optional SHG/THG frequency conversion or other nonlinear conversion processes can be used
There are also optimized setups for high energies available: PulsedAmp 4x / 5x
PulsedAmp 2xHRR

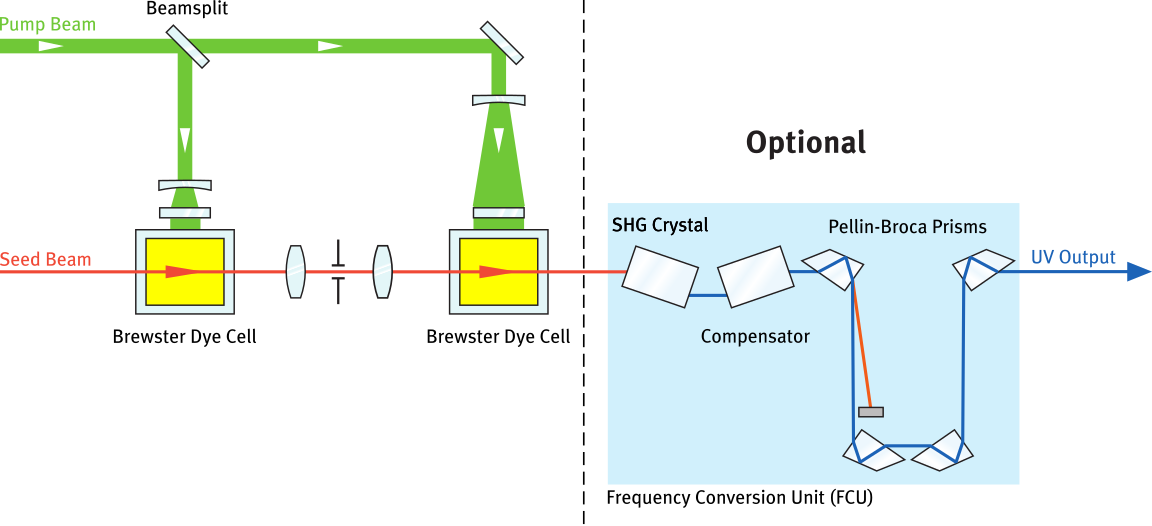

- Consists of two amplification stages
- Two circulator systems with dye cells integrated in single housing
- Additional amplifier for high-energy systems available
All Dimensions in mm. Specifications are subject to change without notice.
Literature & Downloads
PulsedAmp 3xHRR

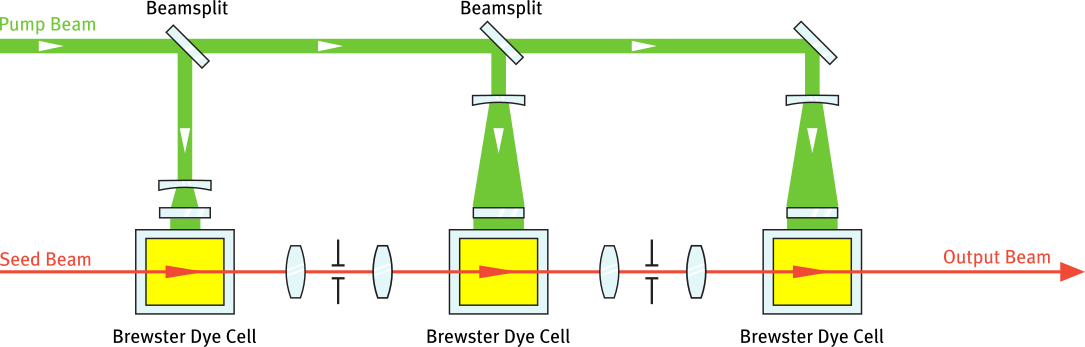

- Consists of three amplification stages
- Three circulator systems with dye cells integrated in single housing
All Dimensions in mm. Specifications are subject to change without notice.
Literature & Downloads
Performance
Using 300 mW of seed radiation and 80 W (2xHRR) / 150 W (3xHRR) of pump laser energy it is possible to generate 8 W (2xHRR) / 15 W (3xHRR) pulses at 730 nm (Pyridine 2). However, results depend of wavelength, seed laser and pump laser details.

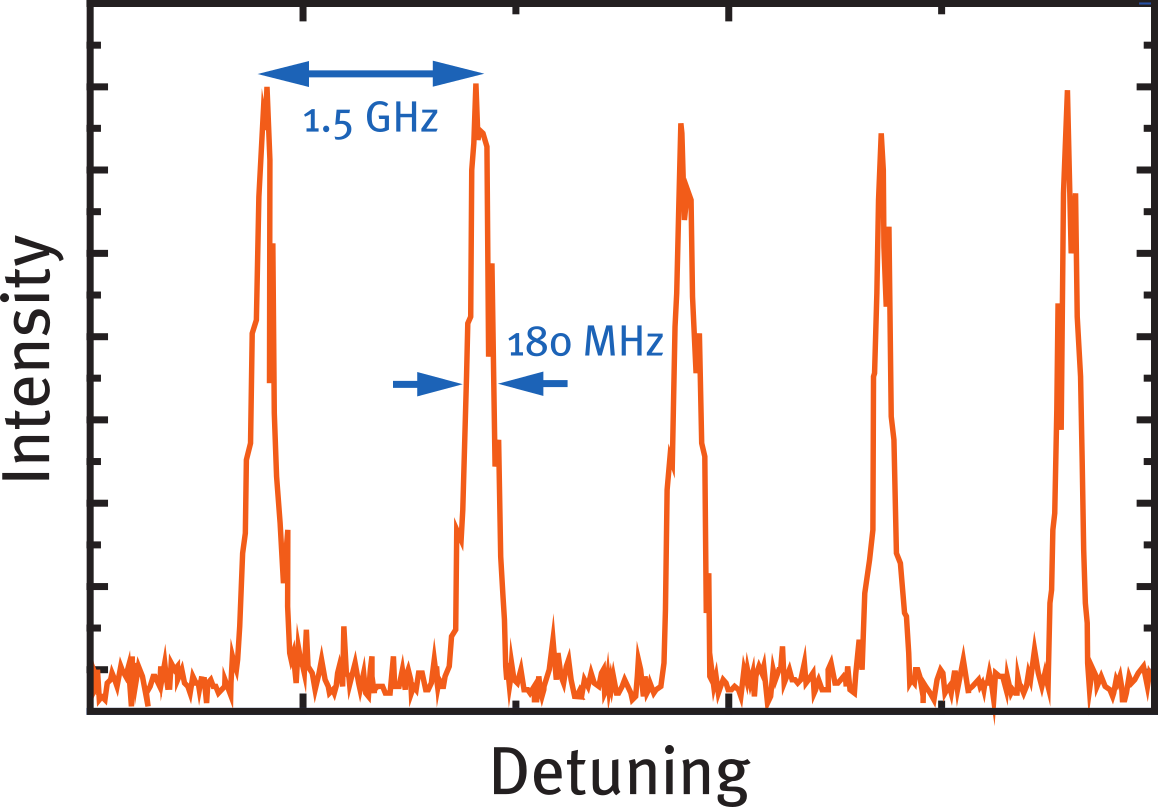

The graph shows the spectral profile of the pulses. The linewidth is determined by the pulse duration and shape (Fourier-limit) of the pump laser, in this case a non-seeded YAG laser.
General Characteristics
| PulsedAmp | 2xHRR | 3xHRR |
|---|---|---|
| Repetition Rate | 1 - >10 kHz | 1 - >10 kHz |
| Wavelength Range | 545 - 900 nm (pumped width 532 nm) 374 - 560 nm (pumped width 355 nm) | 545 - 900 nm (pumped width 532 nm) 374 - 560 nm (pumped width 355 nm) |
| Linewidth | 180 MHz | 180 MHz |
| Conversion Efficiency | up to < 5 % | up to < 5 % |
| ASE | < 5 % | < 5 % |
| Divergence | 0.5 mrad | 0.5 mrad |
| Beam Size | approx. 1 mm (typical) | approx. 1 mm (typical) |
| Pump Energy | < 10 mJ, 4 - 35 ns, max. 80 W | < 20 mJ, 4 - 35 ns, max. 200 W |
Requirements
| Seed Laser | 50 - 300 mW, linear polarization |
| Ambient Conditions | constant temperature in the 20-30°C range, 80% max. rel. humidity, non condensing |
| Optical Isolation | > 30 dB |
| Cooling | required for dye solution (600 Watt) |
| Laboratory | vibrational isolated optical table, dust-free air (flow box) |
| Voltage | 110 - 220 V, single phase, 50/60 Hz |
