Matisse 2 Titanium:Sapphire
- Improved Housing: Faster Purge of Laser
- Extension modules available from 210-4200 nm
- Hands free operation with ELSA (Electronic Laser Self Alignment)
- Low Amplitude Noise: Quiet Laser Operation
- Extended scans over nanometers (requires wavemeter, optional fiber launch integrated in Matisse)

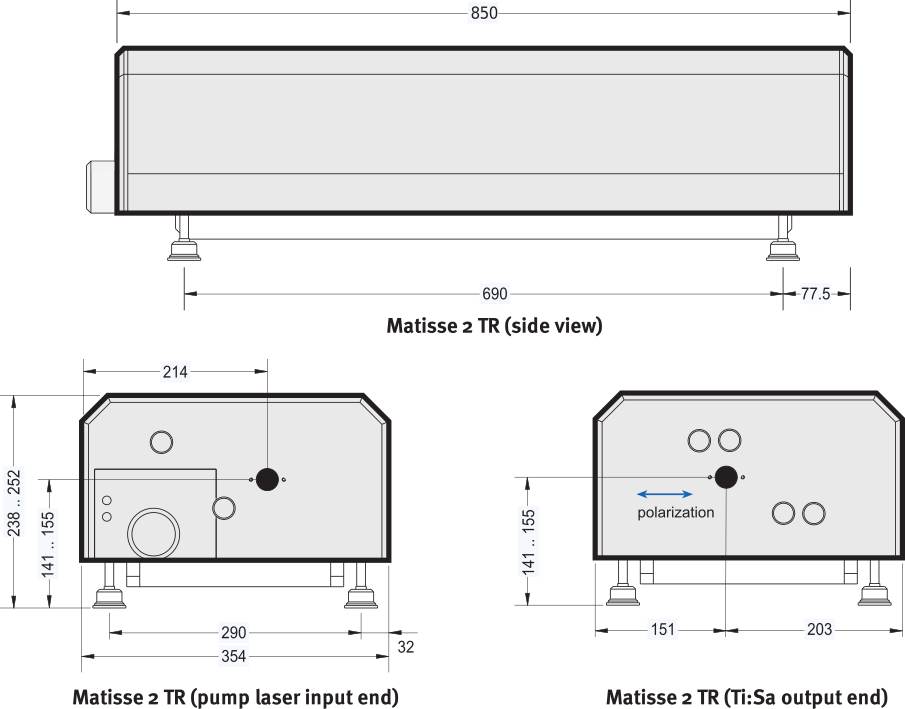

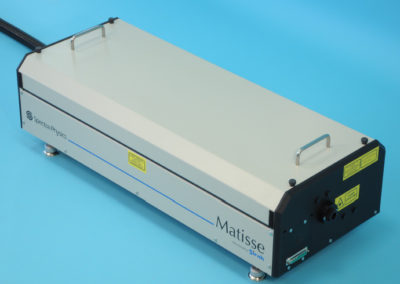

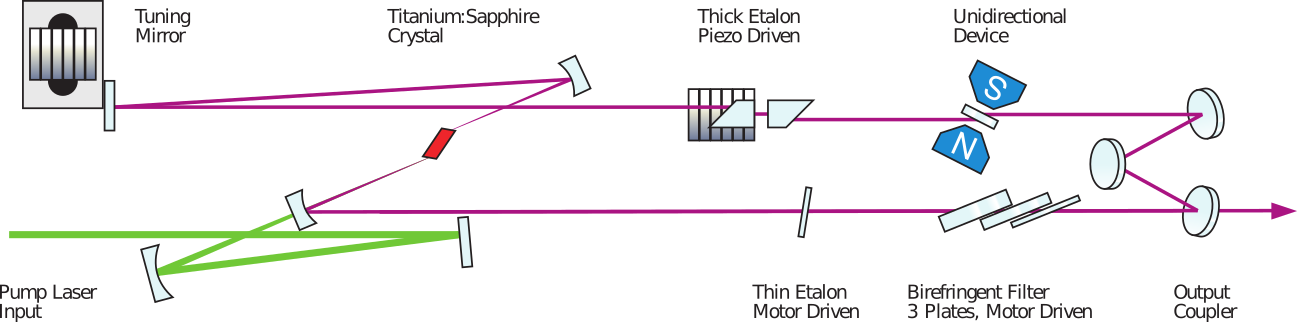

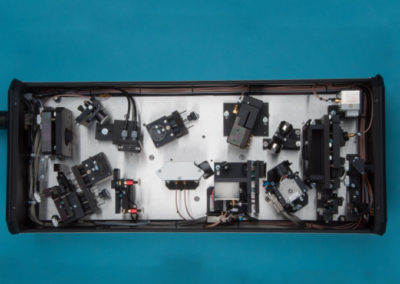

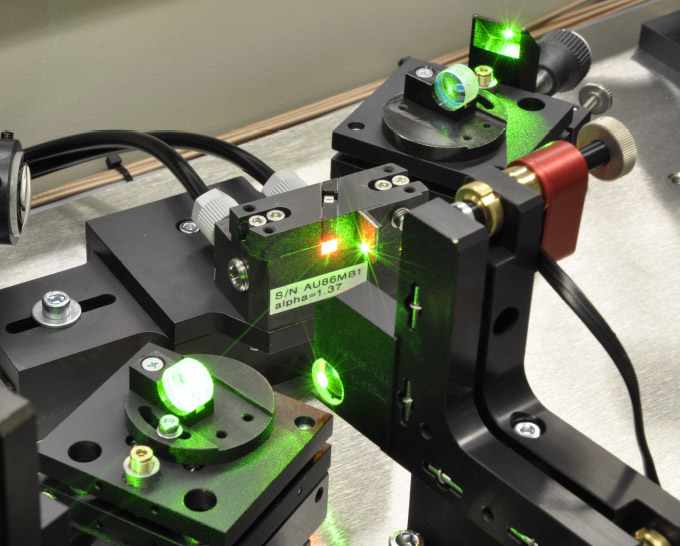

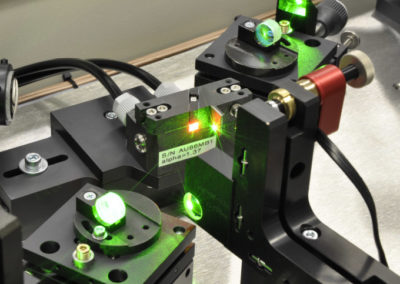

Matisse 2 TR
Passively stabilized < 1 MHz
- High power output up to 8.4 W
- Special optics for enlarged tuning range (662-1050 nm)

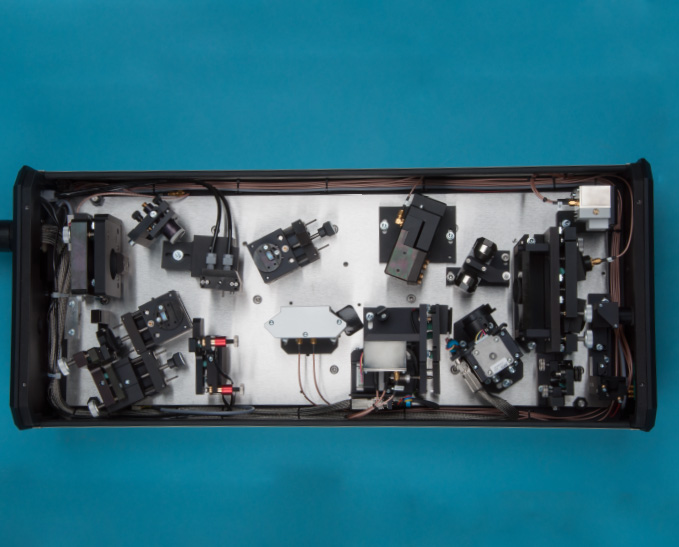

- Field serviceable: optics change, maintenance, upgrades, conversion to Matisse 2 DR (Dye)
- Intracavity EOM available

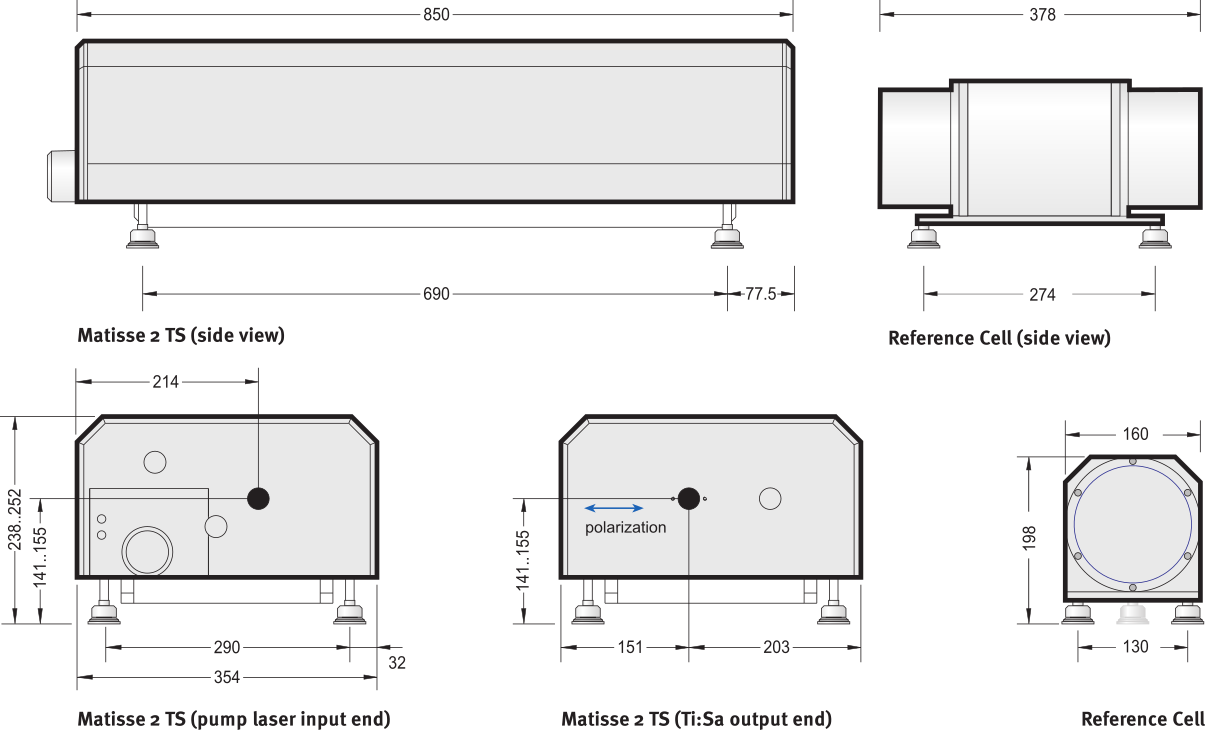

All Dimensions in mm. Specifications are subject to change without notice.
U.S. Patent 7,489,715
Literature & Downloads
Matisse 2 TS

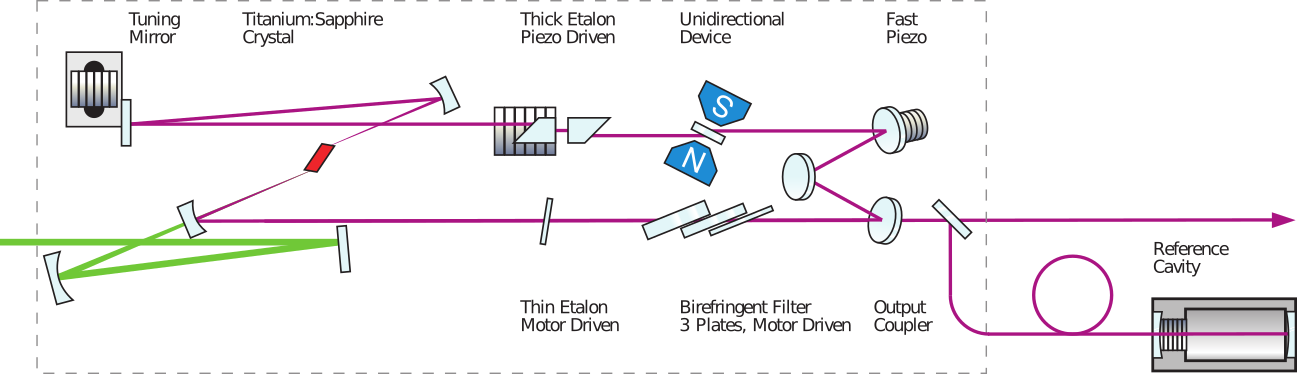

Actively stabilized < 50 kHz
- High power output up to 8.4 W
- Narrow linewidth: High spectral resolution
- Special optics for enlarged tuning range (662-1050 nm)
- Field serviceable: optics change, maintenance, upgrades, conversion to Matisse 2 DS (Dye)
- Intracavity EOM available
All Dimensions in mm. Specifications are subject to change without notice.
U.S. Patent 7,489,715
Literature & Downloads

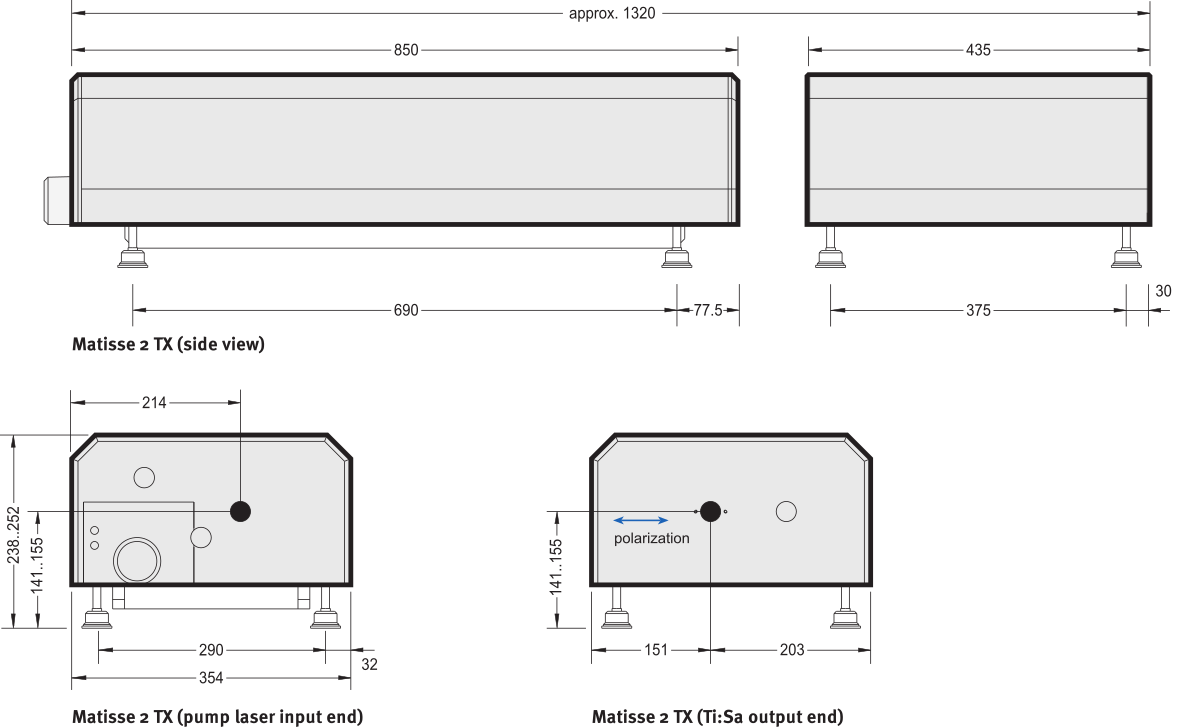

Matisse 2 TX

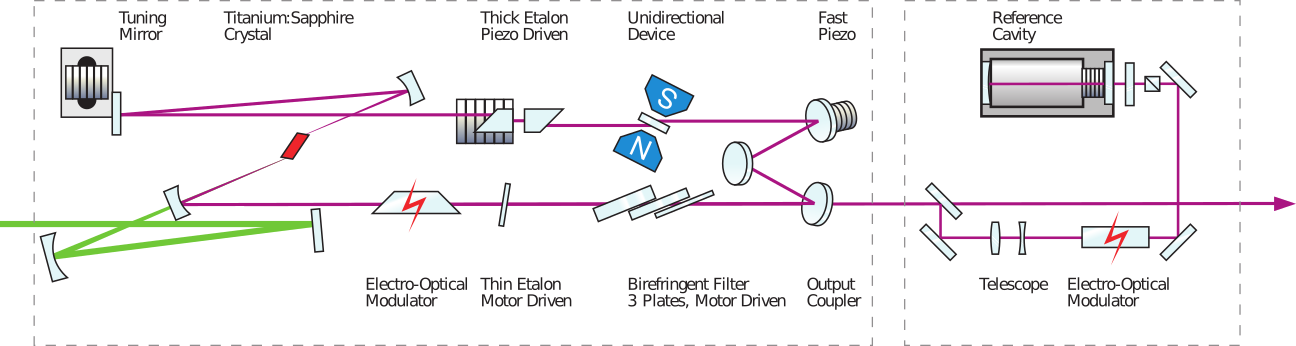

Pound-Drever-Hall stabilized < 30 kHz
- High power output up to 7.0 W
- Narrow linewidth: Best spectral resolution commercially available
- Special optics for enlarged tuning range (668-1030 nm)
- Field serviceable: optics change, maintenance, upgrades, conversion to Matisse 2 DX (Dye)
- available without EOM part as
Matisse 2 TX light
All Dimensions in mm. Specifications are subject to change without notice.
U.S. Patent 7,489,715
Literature & Downloads
| Matisse | 2 TR | 2 TS | 2 TX |
|---|---|---|---|

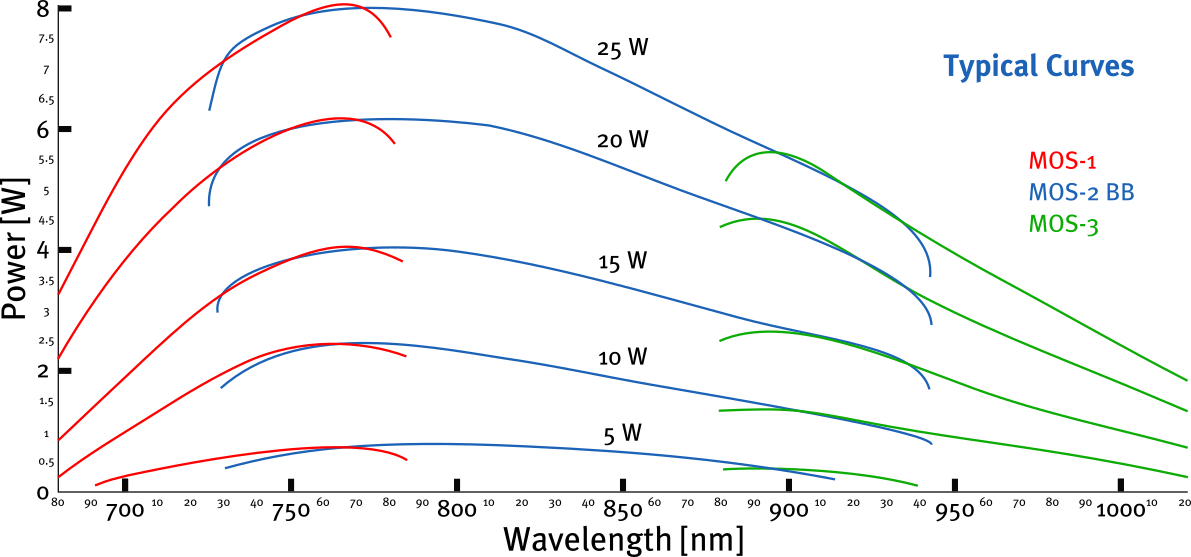

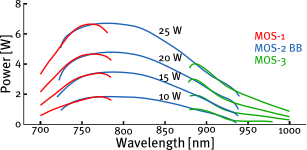

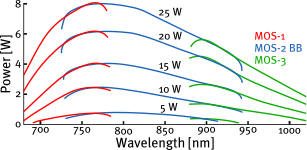

| Specified Power | at approximately 780 nm | ||
| Millennia eV 25 W | 7.2 W | 7.2 W | 6.2 W |
| Millennia eV 20 W | 5.5 W | 5.5 W | 4.7 W |
| Millennia eV 15 W | 3.8 W | 3.8 W | 3.3 W |
| Millennia eV 10 W | 2.0 W | 2.0 W | 1.7 W |
| Millennia eV 5 W | 0.8 W | 0.8 W |  |
| Matisse | 2 TR | 2 TS | 2 TX |
|---|---|---|---|
| Three Optic Sets | depending on pump power, non-standard tuning ranges upon request | ||

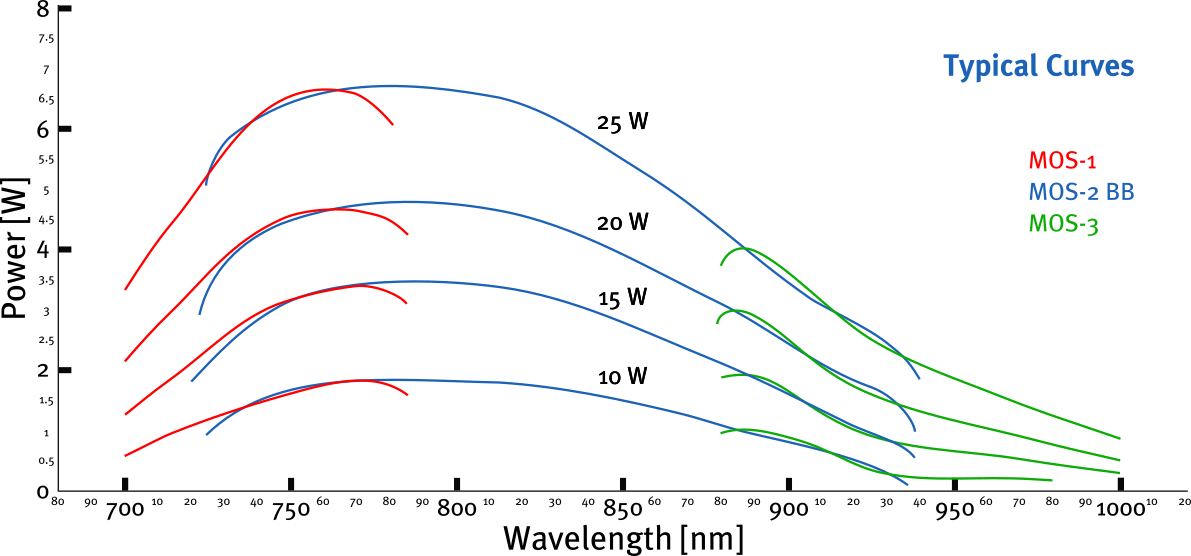

| MOS-1 | 680-780 nm | 680-780 nm | 690-770 nm |
| MOS-2 BB | 730-930 nm | 730-930 nm | 730-930 nm |
| MOS-3 | 880-1020 nm | 880-1020 nm | 880-1015 nm |
General Characteristics
| Matisse | 2 TR | 2 TS | 2 TX |
|---|---|---|---|
| Beam Radius | 0.6-0.7 mm (typical) (at Matisse output port) | 0.6-0.7 mm (typical) (at Matisse output port) | 0.6-0.7 mm (typical) (at Matisse output port) |
| Beam Divergence | < 1.2 mrad (half angle) | < 1.2 mrad (half angle) | < 1.2 mrad (half angle) |
| Linewidth | < 1 MHz rms / 100 msec, < 100 kHz rms / 100 µsec | < 50 kHz rms / 100 msec, < 35 kHz rms / 100 µsec (relative to built-in reference cavity) | < 30 kHz rms / 100 msec, < 20 kHz rms / 100 µsec (relative to built-in reference cavity) |
| Amplitude Noise | < 0.1 % rms (above pump noise, added in quadrature) | < 0.1 % rms (above pump noise, added in quadrature) | < 0.1 % rms (above pump noise, added in quadrature) |
| Scan Range | > 50 GHz (at approximately 780 nm) | > 50 GHz (at approximately 780 nm) | > 50 GHz (at approximately 780 nm) |
| Beam Polarization | horizontal | horizontal | horizontal |
Requirements
| Matisse | 2 TR / 2 TS / 2 TX |
|---|---|
| Pump Laser | Millennia Series (please contact Sirah for compatibility with other pump lasers) |
| Ambient Conditions | constant temperature in the 20-30°C range, 80% max. rel. humidity, non condensing |
| Cooling | required for crystal (ca. 30 Watt) |
| Laboratory | vibrational isolated optical table, dust-free air (flow box) |
| Computer Control | Windows 7 / 8 / 10 / 11, USB-Port |
